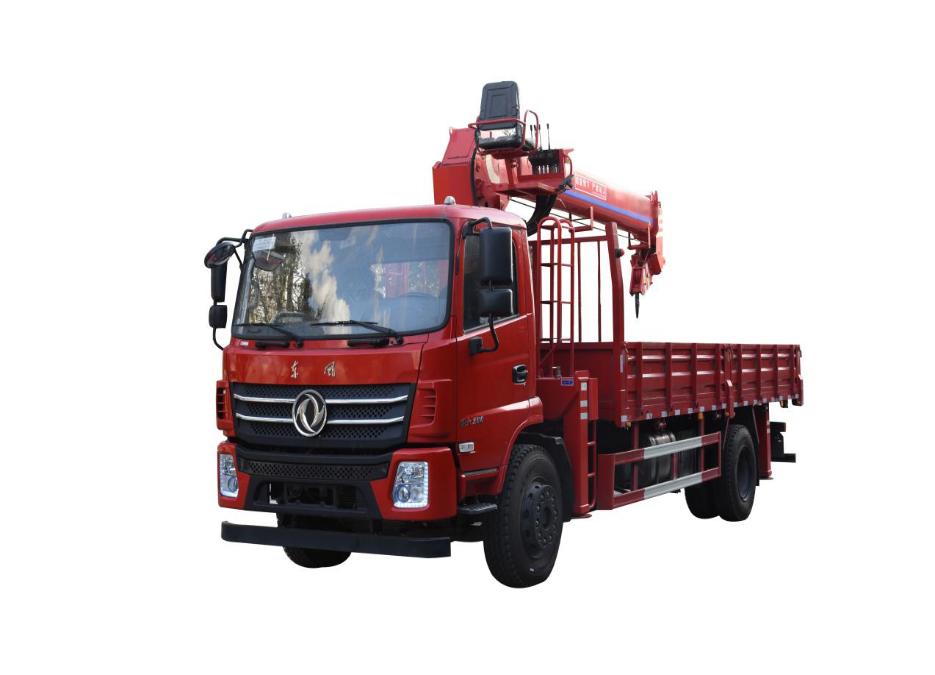

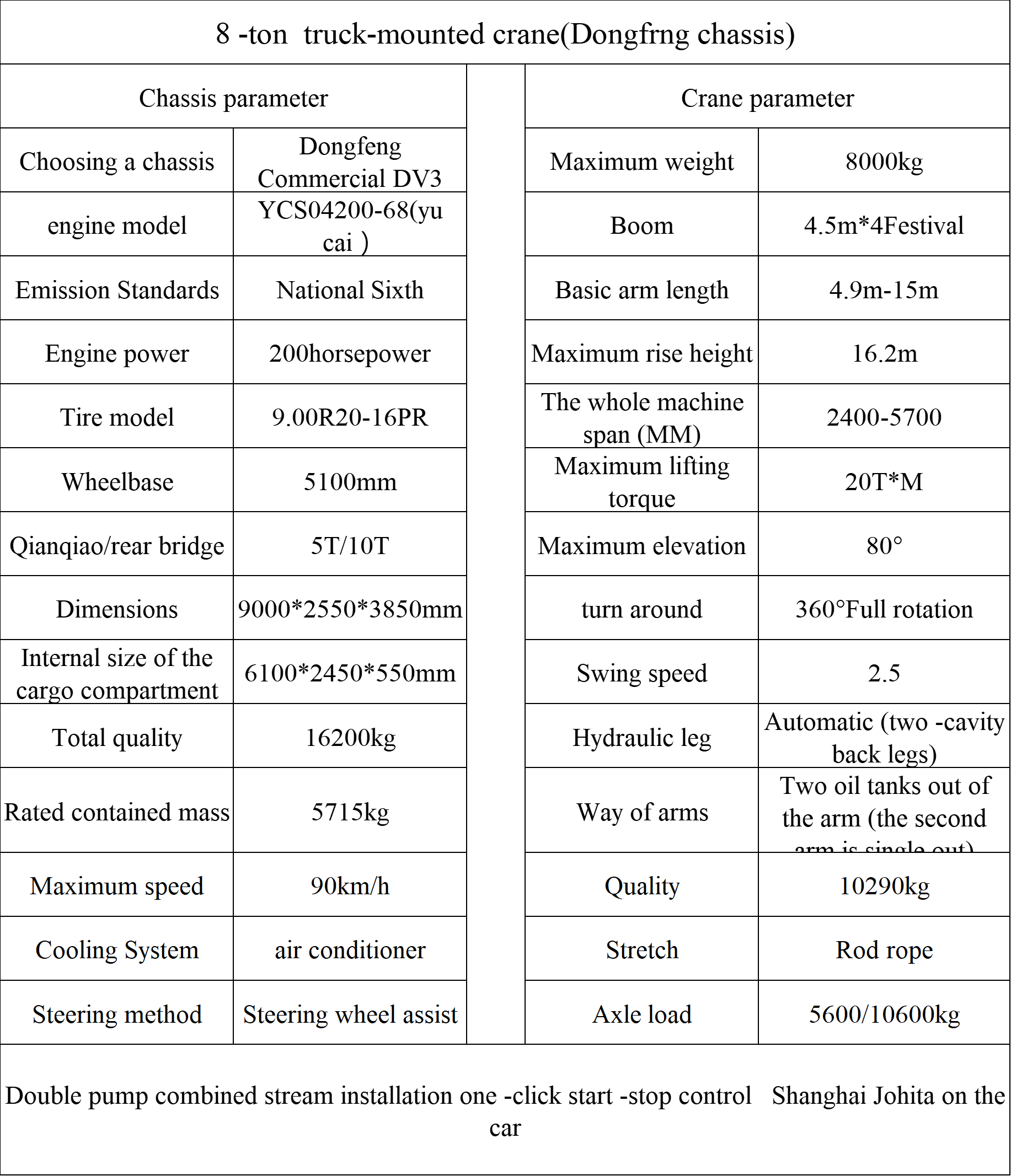

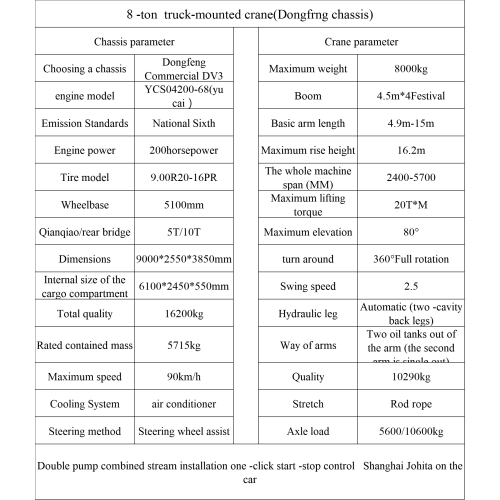

8 -ton truck-mounted crane(Dongfeng chassis) | ||||
Chassis parameter | Crane parameter | |||
Choosing a chassis | Dongfeng Commercial DV3 chassis | Maximum weight | 8000kg | |
engine model | YCS04200-68(yu cai) | Boom | 4.5m*4Festival | |
Emission Standards | National Sixth | Basic arm length | 4.9m-15m | |
Engine power | 200horsepower | Maximum rise height | 16.2m | |
Tire model | 9.00R20-16PR | The whole machine span (MM) | 2400-5700 | |
Wheelbase | 5100mm | Maximum lifting torque | 20T*M | |
Qianqiao/rear bridge | 5T/10T | Maximum elevation | 80° | |
Dimensions | 9000*2550*3850mm | turn around | 360°Full rotation | |
Internal size of the cargo compartment | 6100*2450*550mm | Swing speed | 2.5 | |
Total quality | 16200kg | Hydraulic leg | Automatic (two -cavity back legs) | |
Rated contained mass | 5715kg | Way of arms | Two oil tanks out of the arm (the second arm is single out) | |
Maximum speed | 90km/h | Quality | 10290kg | |
Cooling System | air conditioner | Stretch | Rod rope | |
Steering method | Steering wheel assist | Axle load | 5600/10600kg |
