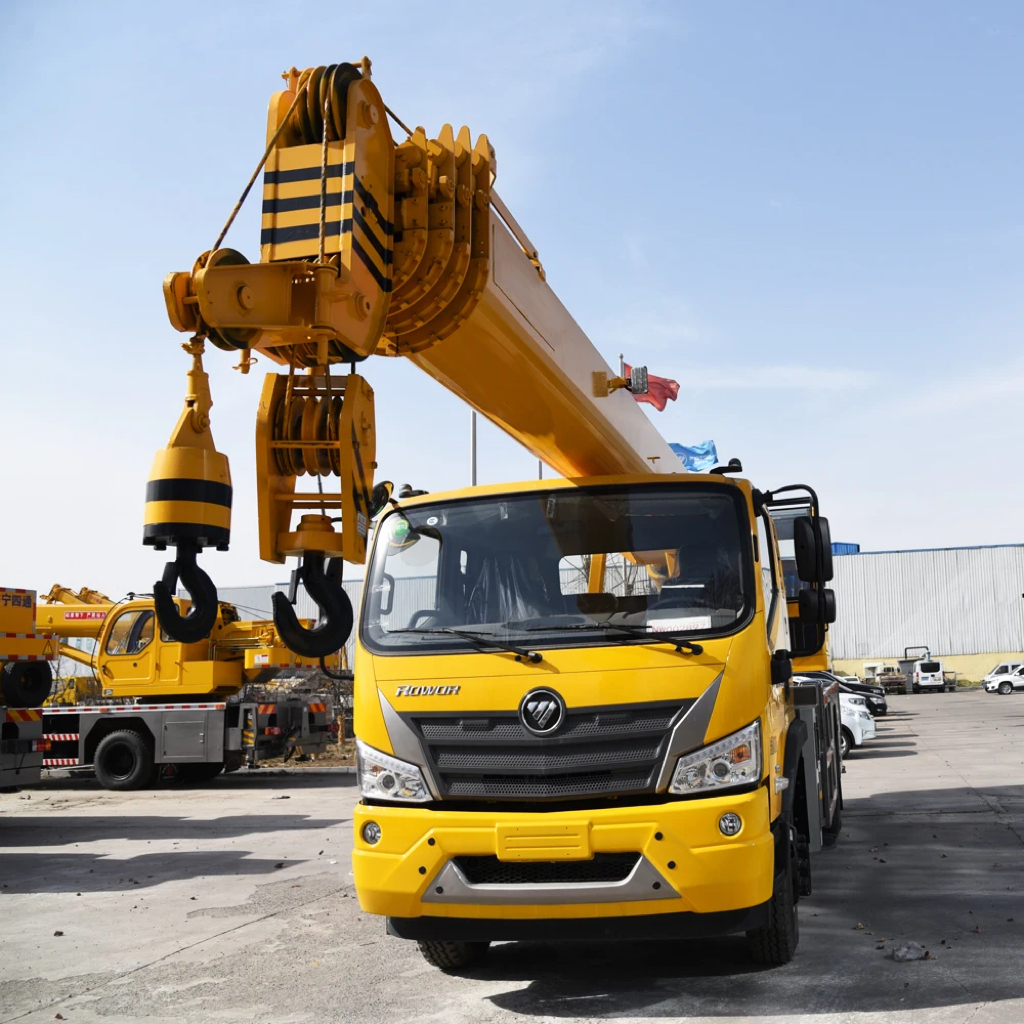

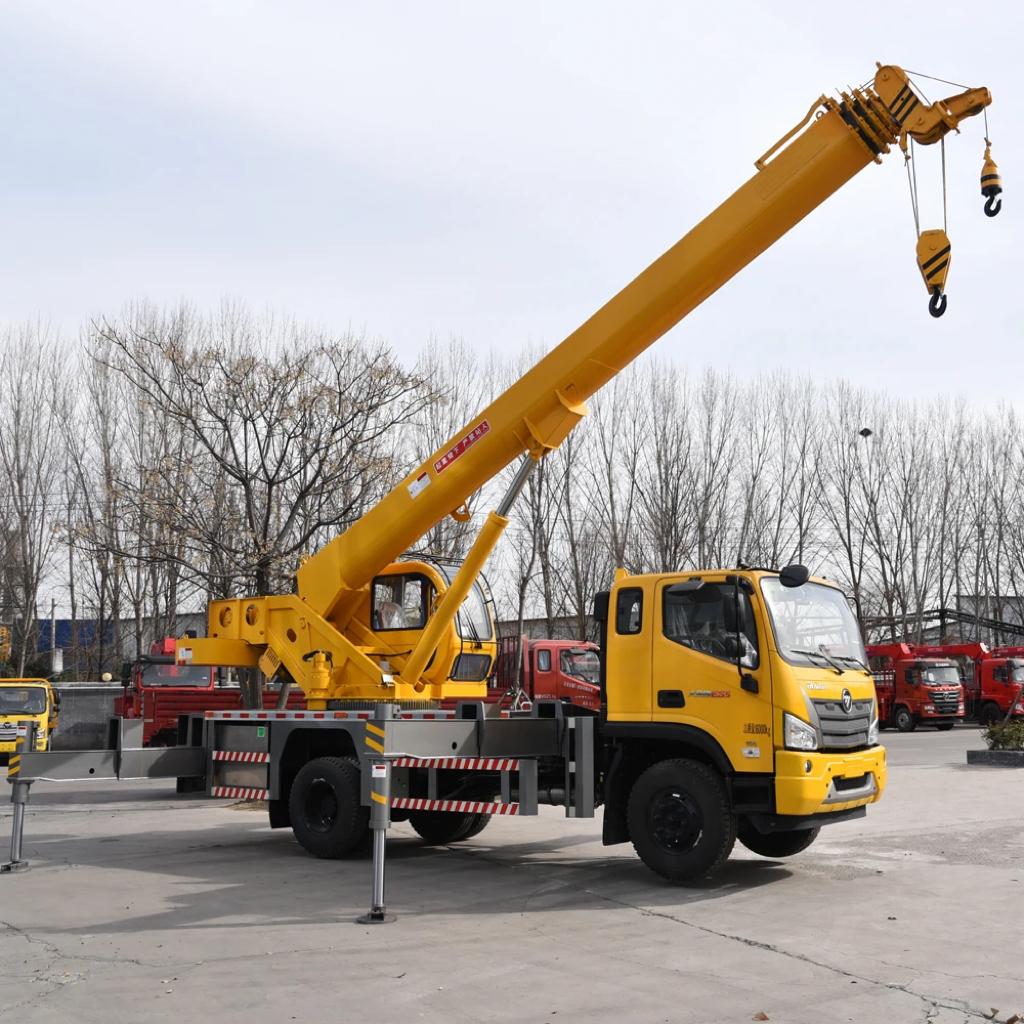

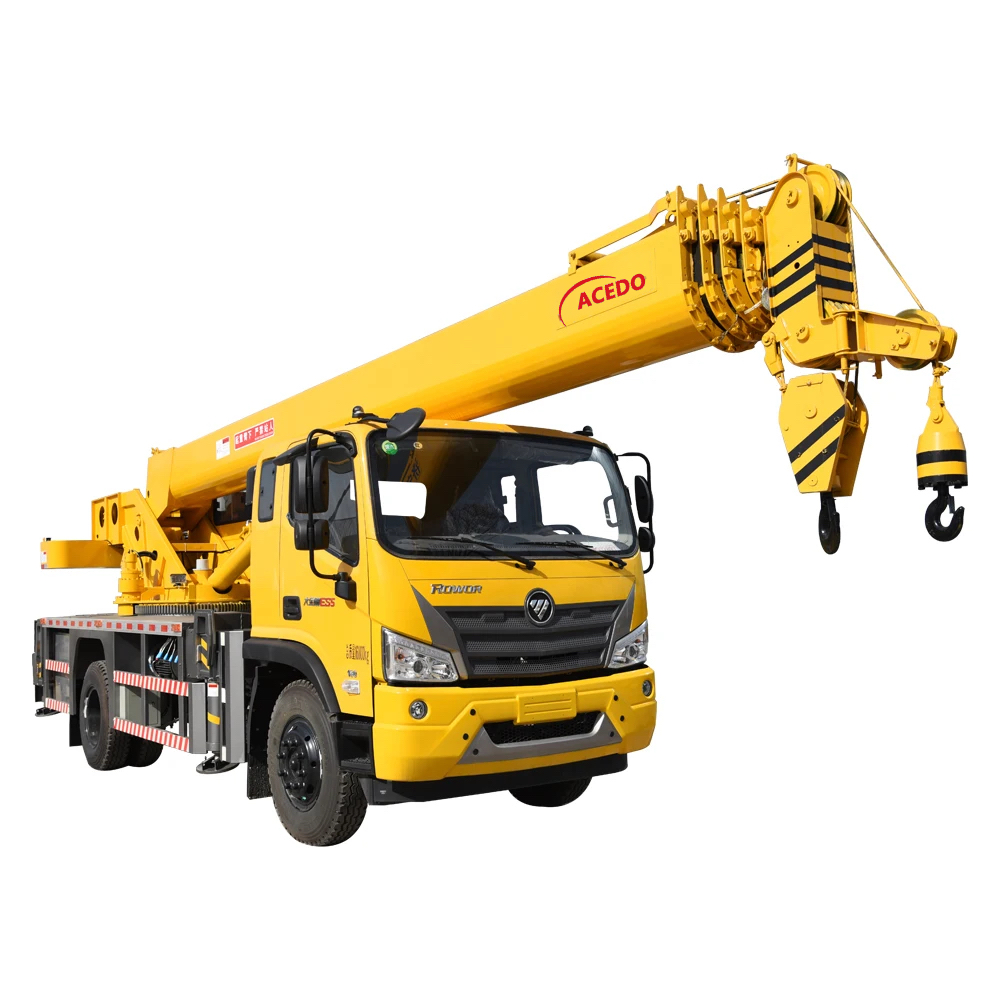

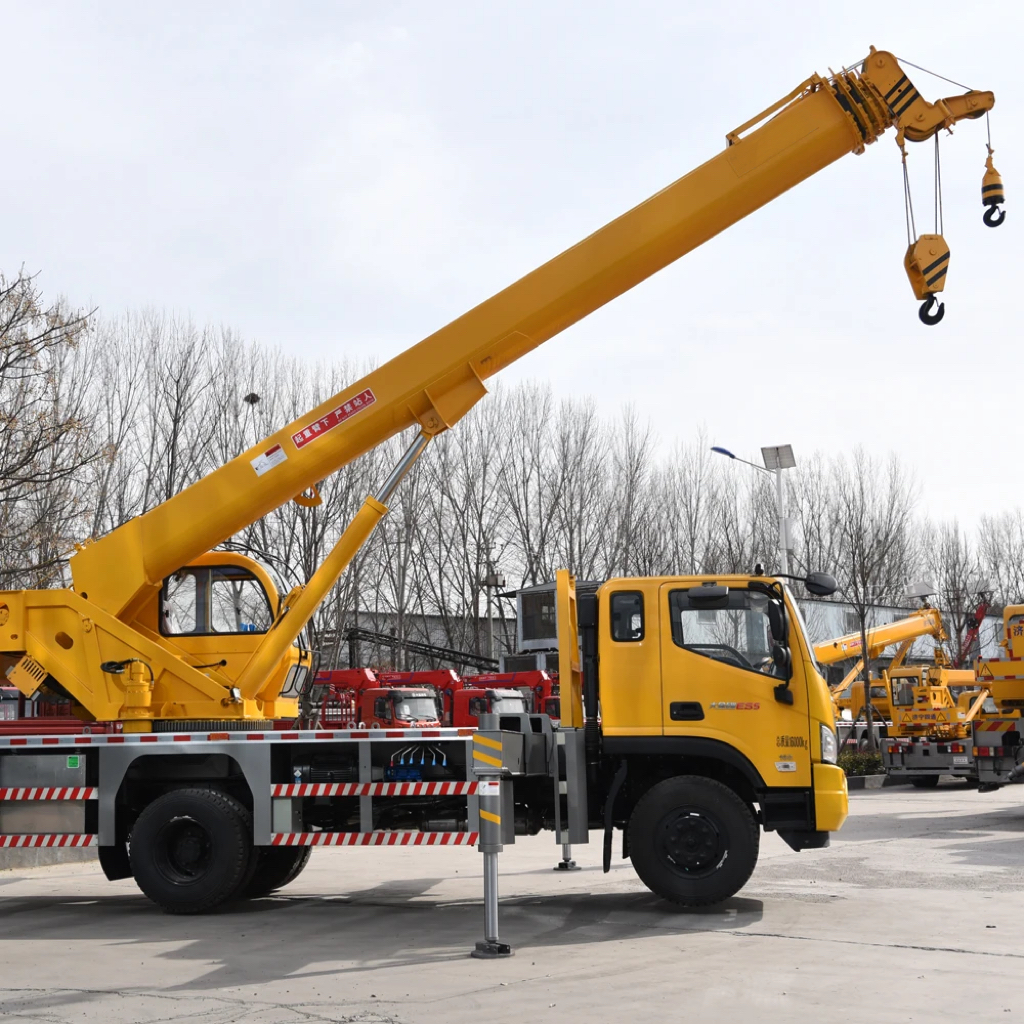

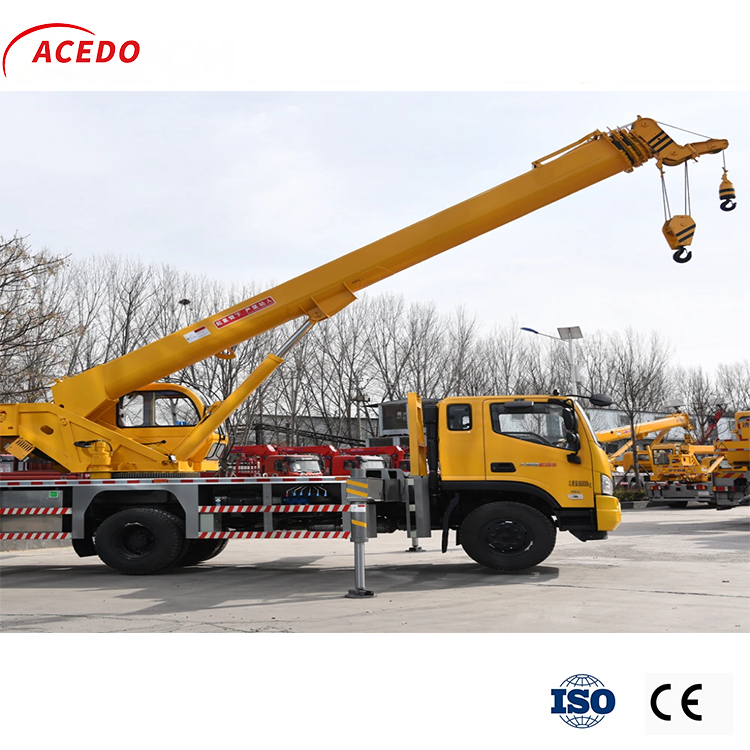

| 16TFoton (National VI) crane parameters | |||
| Model | QY12D5 | main hook winch | Inclined shaft winch (large) |
| Chassis model | Foton4500 | Auxiliary hook winch |
Inclined shaft winch (large) |
| Maximum lifting weight |
16000 Kg | Reducer model | Planetary reducer |
| Maximum lift height | 36.6 m | Slewing ring | 011.40.1120 |
| Boom U-shaped | 8.5x5m veneer arm | three-pump engine | 63/50/32 |
| Outrigger span (horizontal*vertical) |
5.4x6.5m double leg | Motor, three pumps |
50/40/32 |
| Dimensions | 10.9x2.35x3.35 m | center rotation | Big six holes |
| Motor Power | 15 Kw | Large frame size | Box frame |
| Lifting speed vice/main hook |
120/110 m/min | human arm size | 560x462mm |
| Swing speed | 0-3rpm | rear shift top | Hydraulic horizontal telescopic rear legs |
| Engine model: Weichai |
WP4.1NQ190E61 | direction form | help force |
| engine power | 40 Kw/190 HP | Brake form | air brake |
| tire model steel tire | 10.00-R20 | gearbox | Fast 8JS85F |
| Driving speed | 75 Km/h | Cab | XCMG operation room |
| wheelbase | 4500mm | Actual/Announced Weight |
18000 Ke |
| Other configuration: double-sided operation negative angle electronic accelerator XCMG small hook air cushion seat |
|||
Optional: hydraulic air conditioner, front air conditioner, electric air conditioner, remote control power off, torque, camera, manual hydraulic pump |
|||
