25 м

Engine

WP2.3Q140E62

Rearview mirror

Left/right frame type new national standard rearview mirror (four

mirror type)

Suspension

3/5+3HJ

Transmission case

WLY8GS46

Cab style

Classic Dream Chaser

Tank

Fuel urea integrated system (120L+25L)

Interior of the driver's

cabin

Fully equipped driver's cab

BS+ASR

Equipped with ABS+ASR (including ASR switch)

Rear axle

3.5t (standard wheelbase) (drum)/4.875

Other standard

equipment

Standard  rear  lower  protection,  car  sticker  (M3),  parking  wedge, central   locking   and   electric   doors   and   windows+remote   key, automatic  brake clearance adjustment device, triangular warning sign,  VIN  engraved  on  the  right  front  of  the  frame,  lightweight front  lower  protection,  front  and   rear  axle  wear  alarm  device, aluminum   alloy   air   cylinder,   air   dryer,   adjustable    headlights, National VI emission  monitoring terminal,  reflective vest, electric control  air  horn,  color  screen  instrument  panel,  N2  (non  city vehicles)

Paint

Ordinary paint for the cab

Clutch power assist

Equipped with clutch power assist

Spring brake

Equipped with spring brakes

             Tyre

7.00R16 10PR high-strength steel wheel vacuum tire

The front axle

2.0t (drum type)

Maximum homework

height

21m

Maximum working range

16m

Platform rated load

200KG

Arm rotation angle

360°

Platform size

1500mm*700mm*1100mm

Platform rotation range

±180°

Arm

7-section arm, 6-section synchronous extension and contraction,

with a spare wire rope for the wire rope exit arm. Even if the main

wire rope breaks, it can smoothly lower the person down

Operating system

A well-known domestic electronic control system equipped with

wireless remote control and third-party operation

Hydraulic system

Electro hydraulic proportional valve, capable of infinite speed

regulation, equipped with emergency power source

Hydraulic support leg

H-shaped legs, 4 telescopic legs, individually adjustable; Fully

enclosed legs for greater stability

Safety device

Get on/off interlock, limit protection, emergency power source,

bidirectional hydraulic balance valve

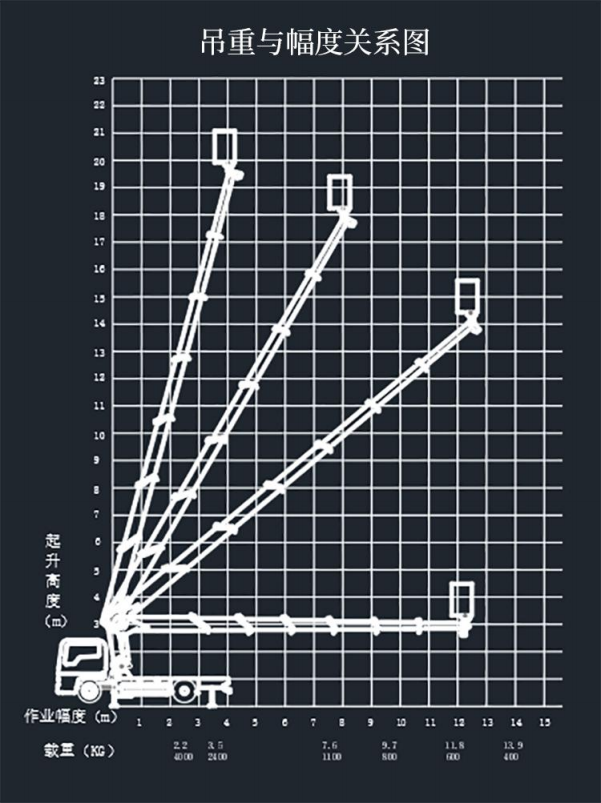

Maximum lifting capacity

5000kg

Main winch

5T

Lifting arm

7 sections of upper arm

Maximum lifting height

21m

Rotating structure

360 degree arbitrary rotation

ower pump

Single pump

Tablet size

3300mm*2100mm

Operation method

Medium operation
