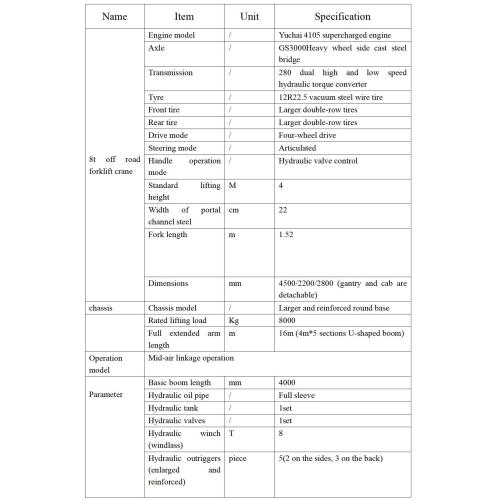

Name | Item | Unit | Specification |

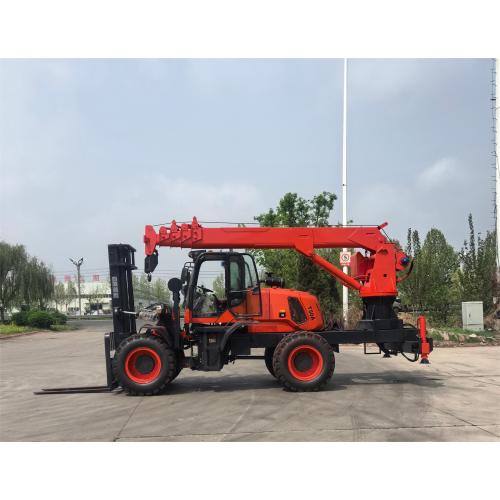

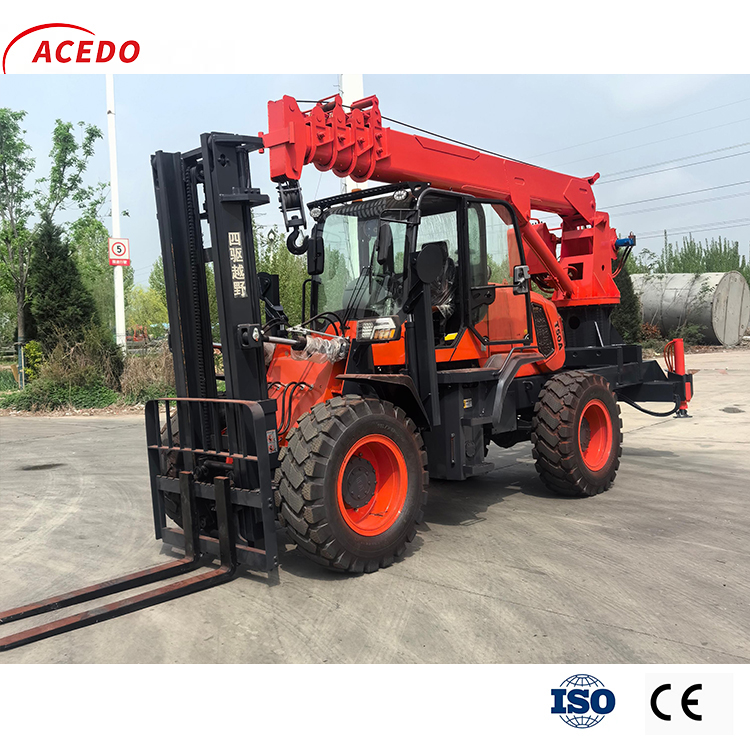

8t off road forklift crane | Engine model | / | Yuchai 4105 supercharged engine |
Axle | / | GS3000Heavy wheel side cast steel bridge | |
Transmission | / | 280 dual high and low speed hydraulic torque converter | |
Tyre | / | 12R22.5 vacuum steel wire tire | |
Front tire | / | Larger double-row tires | |
Rear tire | / | Larger double-row tires | |
Drive mode | / | Four-wheel drive | |
Steering mode | / | Articulated | |
Handle operation mode | / | Hydraulic valve control | |
Standard lifting height | M | 4 | |
Width of portal channel steel | cm | 22 | |
Fork length | m | 1.52 | |
Dimensions | mm | 4500/2200/2800 (gantry and cab are detachable) | |
chassis | Chassis model | / | Larger and reinforced round base |
Rated lifting load | Kg | 8000 | |

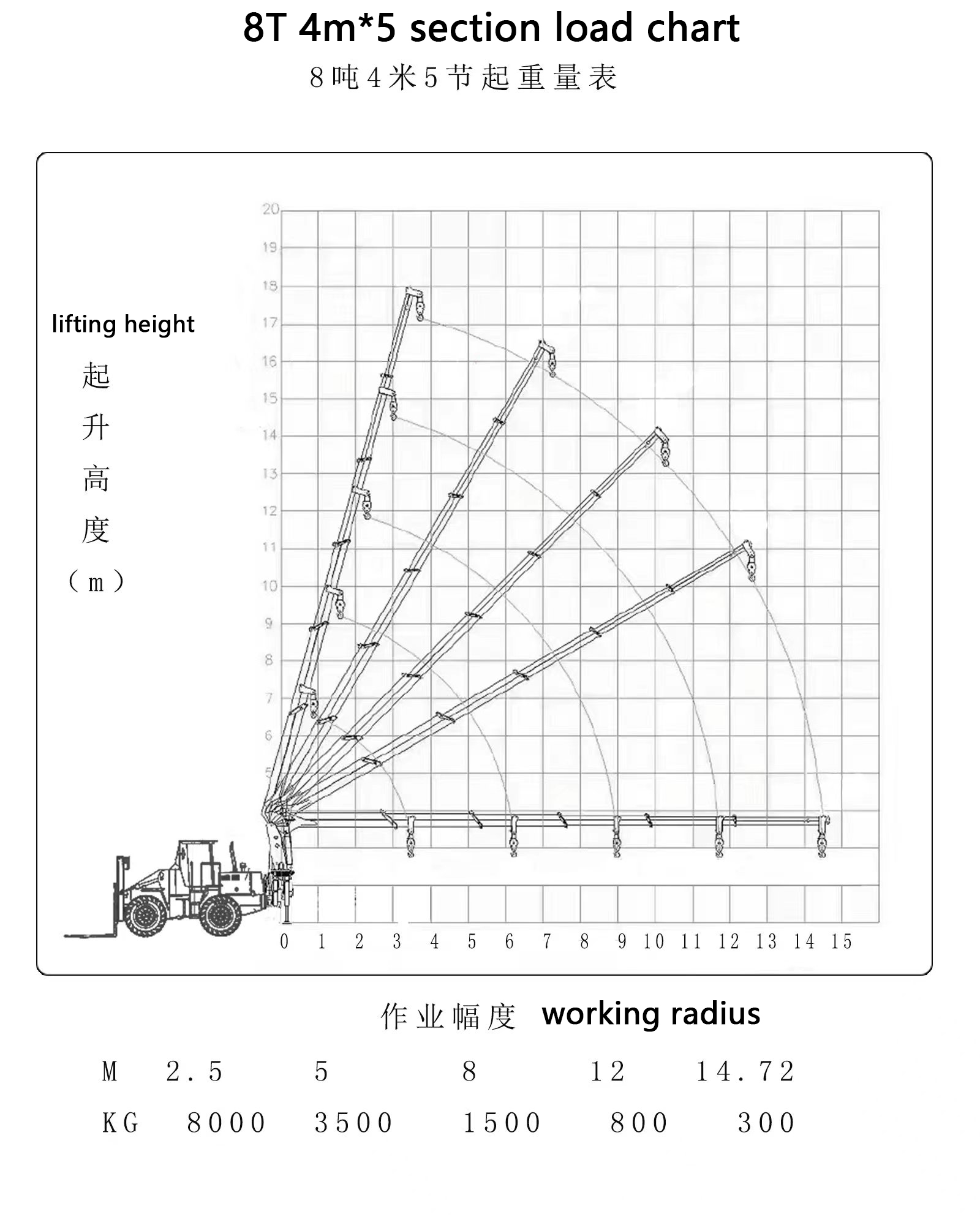

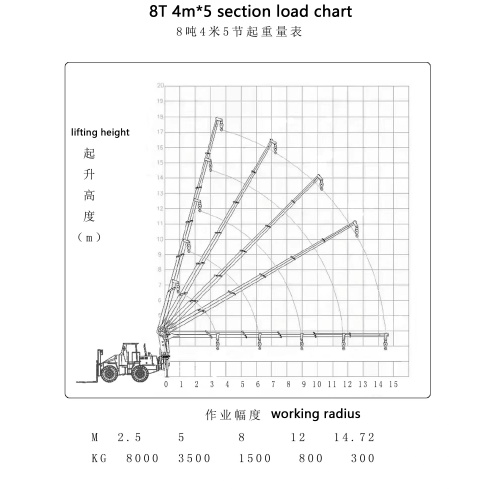

Full extended arm length | m | 16m (4m*5 sections U-shaped boom) | |
Operation model | Mid-air linkage operation | ||
Basic boom length | mm | 4000 | |
Parameter | Hydraulic oil pipe | / | Full sleeve |
Hydraulic tank | / | 1set | |
Hydraulic valves | / | 1set | |
Hydraulic winch (windlass) | T | 8 | |
Hydraulic outriggers (enlarged and reinforced) | piece | 5(2 on the sides, 3 on the back) |
