Особенности продукта
|
Name/model |

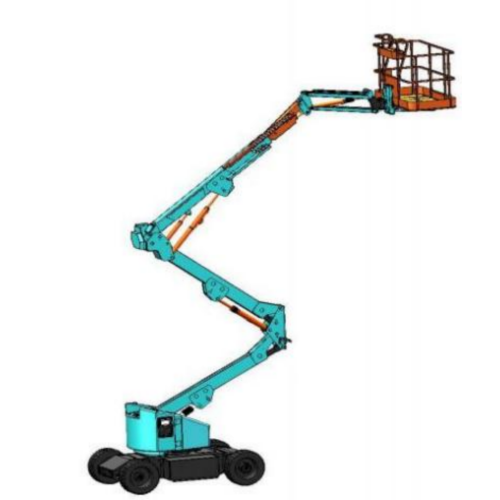

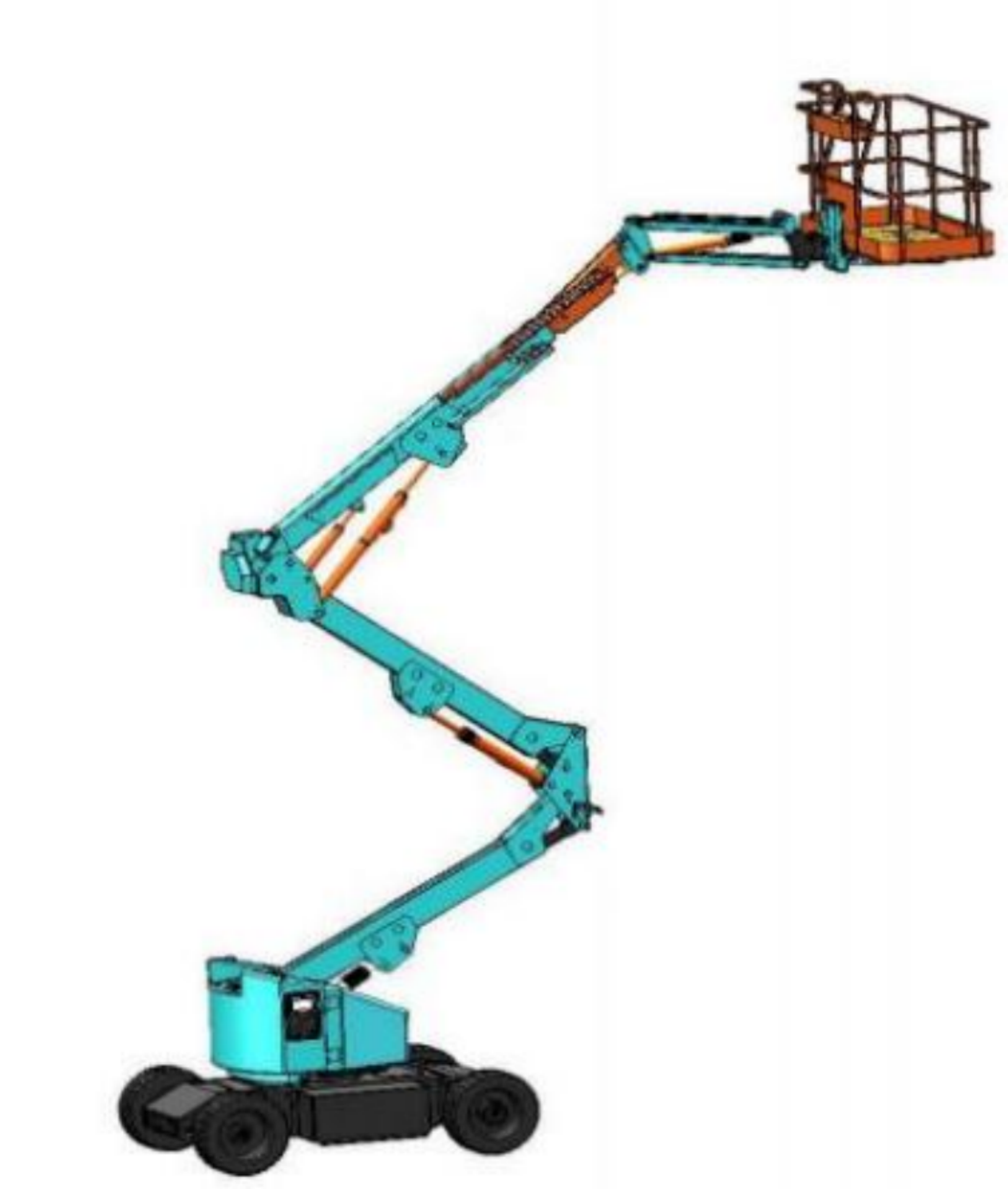

16 m curved arm self-propelled aerial work vehicle /FQ16-LI |
|
size |
|
|
maximum workingheight |
16m |
|
Maximum platform height |
14m |
|
Maximum horizontal extension |
7.4m |
|
Maximum span height |
7.5m |
|
A Platform length
|
0.92m |
|
B Platform width |
1.8m |
|
C Total height of the machine (folded)
|
2m |
|
D Total length (folded) |
6.6m |
|
E Overall width of the machine
|
1.75m |
|
F wheel base |
2m |
|
G ground clearance
|
0.22m |
|
function |
|
|
Maximum carrying capacity |
230kg |
|
The platform rotates |
±90° |
|
The turntable rotates |
355° |
|
Maximum speed (retracted) |
5km/h |
|
Maximum speed (lift) |
0.8km/h |
|
Climbing ability (two drives) |
30% |
|
Allowance for inclination is permitted during operation |
5° |
|
Tail swing |
0mm |
|
tyre |
240/55D17.5 |
|
Drive the x steering |
2WDx2WS |
|
motive power |
|
|
Battery specifications |
48V/450Ah (lithium battery) |
|
working voltage |
12V DC |
|
hydraulic oil tank |
20L |
|
weight |
|
|
weight |
6650kg |
